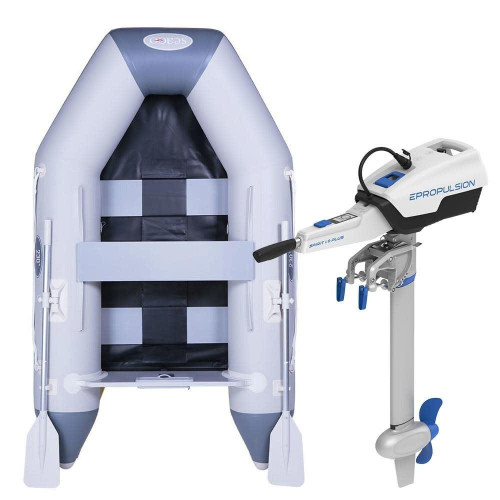

There are great savings to be made when you combine Seago's sleek and stylish 230 slatted floor inflatable dinghy with ePropulsion's incredibly lightweight and portable electric outboard engine.
Seago 230 Slatted Floor Inflatable Dinghy:
Seago's 2.3 metre slatted floor inflatable dinghy provides the perfect balance between lightweight and practicality. The inflatable dinghy has enough room for two people on board and is made from 1100 Decitex 850g PVC that provides it with excellent strength, whilst keeping the weight down.
On board, you™ll find a fully adjustable seat, ensuring comfort whilst on your journey whether rowing or operating an outboard. There are two aluminium oars provided with the tender secured to each chamber with a pin rowlock system. Towing the dinghy is easy thanks to its stainless steel towing eyes. A foot pump is also included.
FAQ™s:
What is the maximum recommended horse power engine that can be used with the dinghy?
4 horse power.
How many people can the dinghy hold?
A maximum of two people.
What are the dimensions of the dinghy?
(L x W) - 2300mm x 1360mm.
What is included with the dinghy?
A carry/storage bag, repair kit and aluminium oars.
What is the packed weight of the dinghy?
26kg.
Seago Dinghy Warranty:
This Seago dinghy comes with a two-year warranty from the date of purchase on the base fabrics and seams, as well as a one year guarantee on the auxiliary fittings from the date of purchase. This warranty is only effective upon registration online at seagoyachting.co.uk, or receipt of a completed owner warranty registration card. More information can be found in the owners manual.
Other Features:
Pin rowlock system, Stainless steel towing eyes, Pump, Aluminium oars.
ePropulsion Spirit 1.0 Plus 1kW (3hp) Electric Outboard Motor
ePropulsion Spirit 1.0 Plus Electric Outboard Motor is perfect for inflatable dinghies, fishing boats sailboats and tenders with its integrated 1276Wh large integrated lithium battery that offers a maximum range of 22 miles. The electric outboard motor weighs just 20kg (including the battery!) so is very easy to transport.
Performance:
The ePropulsion outboard motor has a 1kW BLDC has a 1kW BLDC motor, equivalent to a 3hp petrol powered engine.
| Power | Speed (mph/kph) | Runtime (hh:mm) | Range (mile/km) |
| 35W | 2.2 / 3.5 | 36:25 | 80 / 129 |
| 65W | 2.7 / 4.3 | 19:35 | 53 / 85.3 |
| 125W | 3.5 / 5.6 | 10:00 | 35 / 56 |
| 250W | 4.4 / 7.1 | 5:00 | 22 / 35.5 |
| 500W | 5.3 / 8.5 | 2:30 | 13.3 / 21.3 |
| 750W | 5.7 / 9.2 | 1:40 | 9.5 / 15.3 |
| 1000W | 6.2 /10 | 1:15 | 7.8 / 12.5 |
The performance data above is based on a 12ft aluminium boat with one person and one Spirit Plus battery in calm lake water.
Battery - Key Features:
1276Wh Capacity:
The battery offers high-energy density in a compact size, resulting in a large battery capacity.
180W Solar Charging:
Thanks to dual power ports, the outboard motor can be solar charged when discharging.
Positive Buoyancy:
Should the battery fall into the water, there's no need to panic as the electric outboard motor will float.
Digital Operation:
ePropulsion Spirit is easy to operate and will keep you informed of operation status - let's take a closer look at the key operational features.
Ambidextrous Operation:
This ensures the throttle can be turned easily from either the left or right hand side.
Digital Display:
This provides you with access to information including real-time power, remaining runtime, battery level, operating voltage and more.
Electric Start:
There's no need to waste your energy pulling a cord to start the engine, just press one button and you're good to go.
Magnetic Kill Switch:
This will stop the motor in an emergency, keeping you safe.
Maximum Power Output Adjustment:
With smaller full throttle power, the electric outboard motor is safer for kids and rental boats.
Stepless Throttle Charging:
The throttle hand is clear, smooth and enjoyable to use.
Specifications:
Power: 1 kW (3HP equivalent).
Input Voltage: 39V “ 60V.
Standard Battery: Spirit Battery Plus, 1276 Wh li-ion polymer
Motor Weight: 10.6kg / 23.4lbs.
Battery Weight: 8.7kg / 19.2lbs.
Charging Time: Standard charger - 8.5 hours / Fast charger - 3.5 hours.
External Battery: Yes, and E-Series Battery recommended.
Propeller: 11³ × 5.8³ 2-blade composite propeller.
Trim / Tilt Angle: 0°, 7°, 14°, 21° / 70°.
Motor: Brushless DC motor.
Direct Drive: Yes.
Maintenance Free: Yes.
What's In The Box?
Electric outboard motor.
Battery charger.
Pin (x2).
Kill Switch (x2).
Invitation card.
Warranty card.
Quality certificate.
User manual.
Spirit Plus vs Spirit Evo:
| Model | Spirit Plus | Spirit Evo |
| Power | 1000W/3hp | |
| Battery Capacity | 1276Wh | |
| Motor Weight (Short Shaft) | 10.6kg | 11.3kg |
| Battery Weight | 8.7kg | |
| Charging Time | 3.5 Hrs (Fast Charger) / 8.5 Hours (Standard Charger) | |
| Battery Life | 800 cycles at 80% DOD | |
| Input Voltage | 39V - 60V | |
| Propeller RPM | 1200 RPM | |
| Propeller | 11" x 5.8" 2-blade composite propeller | |
| Tilt/Tilt Angle | 0°, 7°, 14°, 21° / 70° | 0°, 7°, 14°, 21° / 85° |
| Hydrogeneration | X | œ” |
| Safety Wristband (Compatible) | X | œ” |
| Display Backlight | X | œ” |
