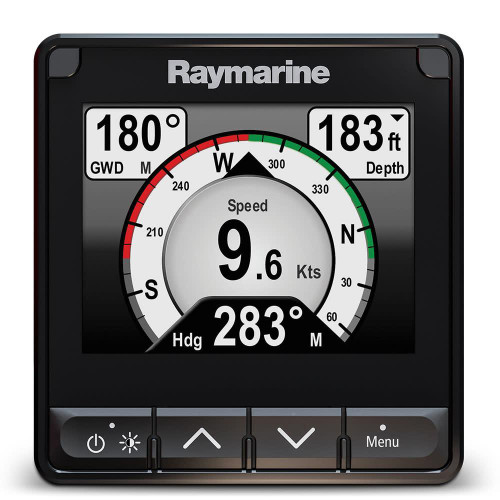

Raymarine's i70s multifunction marine instrument display gives you the freedom to display the instrument and navigation data that is most important to you. Digital, analogue and graphical displays of depth, speed, wind and more are presented on a bold, bright 4.1" display that is sunlight viewable and has a night mode for optimal day and night viewing.

The Raymarine instrument display places frequently used navigation functions right at your fingertips, using the LightHouse instrument interface that's consistent with Raymarine LightHouse multifunction displays. i70 can be added to your existing Raymarine instrument system, or you can create a network of i70 displays and sensors - the choice is yours!

i70s also enables you to display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS equipped vessels and select individual targets to obtain vessel information. You're also able to pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analog depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s instrument to DST800 and p79s Airmar smart transducers.

Raymarine i70s allows for connectivity to the following on board networks:

• First generation SeaTalk networks using a SeaTalk to SeaTalkNG adapter cable.
• Current generation SeaTalkNG networks.
• NMEA2000 networks using a SeaTalkNG to DeviceNet adapter.
• In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.

Key Features:

AIS repeater allows viewing of nearby AIS targets.
Compact footprint.
Data views include wind, speed, depth, tridata, engine, environment, fuel and navigation.
Large, clear characters up to 43mm high for easy reading.
Low power consumption.
Multiple colour palette options for optimal day and night viewing.
Optical bonding enhances brightness, maximizes contrast and eliminates fogging.
Oversized, sun-light viewable 4.1" LCD display.
SeaTalkNG, NMEA2000 and SeaTalk network compatible.

What's In The Box?

1. Suncover.
2. Alternative gunmetal bezel.
3. SeaTalkng spur cable 400 mm (15.7 in).
4. Documentation.
5. i70s instrument display (supplied with buttonpad and black bezel, fitted).
6. Panel seal gasket.
7. Cable suppression ferrite.
8. M3 x 16 pan head pozi mounting screws x 4.

Technical Specifications:

Screen:
Resolution: Resolution: 320(H) x 240(V).
Brightness: Brightness: 1,200 cd/m2.
Size: 4.1" TFT LCD display.
Colour: 16 bit colour (64k colorus).

Power:
Operating voltage range: 9 V dc to 16 V dc (protected up to 32 V dc).
Current: 143 mA.
Nominal supply voltage: 12 V dc.
Power consumption: 1.7 W.
LEN (NMEA 2000 Load Equivalency Number): 3.

Data Connections:
Connections: 1 x SeaTalkNG connector.

Environmental:
Waterproof rating: IPx6, IPx7.
Relative Humidity: 93% Max.
Storage Temperature Range: -30°C to 70°C (-22°F to 158°F).
Operating Temperature Range: -25°C to +55°C (-13°F to +131°F).
