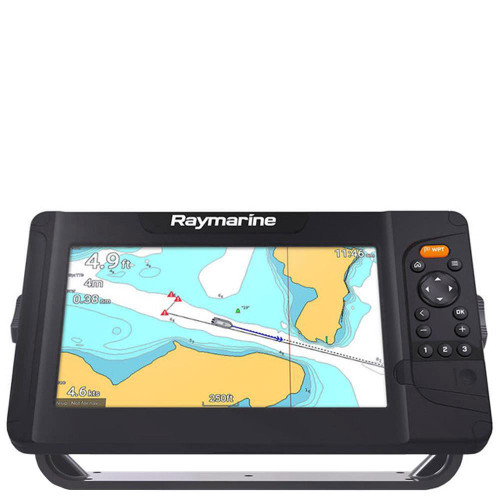

Raymarine's Element S chartplotter is engineered for simplicity and affordable performance - simply select your destination and let Element's fast and accurate 10hZ GPS/GNSS lead the way. Element S features a category-leading quad-core processor that delivers fast chart redraw and responsive performance. The all-weather, sunlight viewable display delivers chart and navigation data in beautiful colour.

The Raymarine chartplotter will keep you on course with its array of fantastic features; including AIS target overlays and autopilot integration. Element S has a built-in High CHIRP Sonar for depth and contour imaging as well as Raymarine's RealBathy personal sonar mapping, that enables you to map uncharted areas.

Raymarine's Lighthouse Sport operating system is designed for boaters that like to keep things simple. From sailing to fishing to power cruising, the operating system can easily be tailored to your type of boating. There's an oversized waypoint key for quick and easy marking of your favourite locations, as well as three user-programmable quick keys that enable access to your favourite pages with one simple button push. Live menus let you customize charts while seeing the navigation display change in real time.

Safely navigate busy waterways with an optional Quantum wireless radar and AIS receiver. There's also support for Raymarine LightHouse charts, Navionics and C-Map. Furthermore, there's connectivity with NMEA2000 compatible AIS autopilot, marine instruments, engines, tanks and VHF.

Raymarine LightHouse Charts:

Axiom is available with Raymarine LightHouse Charts, which are created from official hydrographic chart sources and offer maximum readability, intuitive navigation and superior nautical chart quality.

The image above illustrates which different areas are covered by each charts, so if you're in the UK, we recommend purchasing the Western Europe region.

Transducers:
Raymarine Element S is compatible with CPT-S transom and thru-hull transducers.

Other Sizes Available:

Raymarine Element S 9" Chartplotter.
Raymarine Element S 12" Chartplotter.

What's In The Box?

Element display.
Surface mount gasket.
Suncover.
Trunnion knobs x2.
Trunnion bracket.
Documentation pack.
Surface mount stainless steel fixings x4 (M4 x 40 machine screw, M4 flatwasher, M4 locking nut).
Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).

Technical Specifications:

General:
Display Size: 7.0" Optically Bonded LCD.
Display Resolution: 800 x 480 WVGA.
Display Type: Non-Touch.
Brightness: 1,500 nits.

Physical:
Dimensions (W x H x D): 9.5" x 5.3" x 2.4".
Product Weight: 3.0lbs.
Water Ingress Protection: IPx6 and IPx7.
Operating Temperature Range: -25C to +55C.
Storage Temperature Range: -30C to +70C.

Power:
Power Consumption (Max 12V DC): 15 watts.

Sensors:
GNSS / GPS: Built-in GPS/GLONASS.
Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers.
Sonar Depth: CHIRP Sonar = 274m (900 feet).
Radar: Quantum wireless CHIRP compatible. Wi-Fi only connection.

Networking:
NMEA2000: 1 x NMEA2000 port (DeviceNet microC).
Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization). OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays.
SeaTalk: Requires A06045 DeviceNet female (F) adapter cable - 400mm.
WiFi: 802.1 1 b / g / n.

Other:
Cartography: Raymarine LightHouse NC2, Navionics, C-Map Essentials, C-MAP 4D Max+. Compatible with all charts listed on Raymarine Chart Store.
Tides & Currents: Requires LightHouse LNC2, Navionics or *C-Map.
Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Live.
Waypoint / Routes / Tracks: 5,000 pts / 2000 wpt / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts.
External Memory: 1 x microSD slots.
