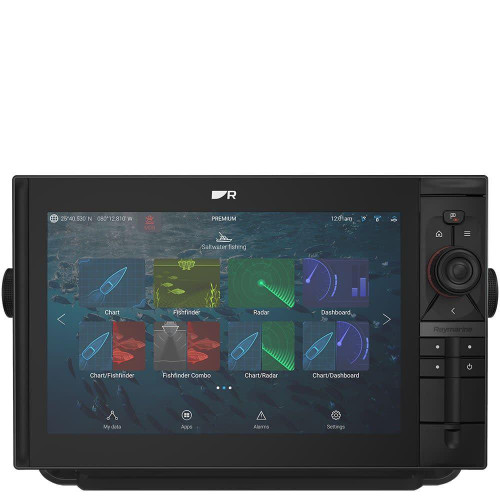

Raymarine's Axiom 2 Pro combines a chartplotter, fishfinder, radar, autopilot and video - all into a powerful, all-in-one fishing system. The multi-function unit is designed for discovering the deep, with its integrated multichannel fishfinder with RealVision MAX CHIRP sonar technology.

RealVision Max takes your fishfinding game to a new level with increased range, better resolution and sharper fish targets. Axiom 2 Pro models with RealVision MAX have built-in CHIRP DownVision, SideVision, RealVision 3D and 600-watt traditional CHIRP fishfinder for coastal fishfinding, plus a 1kW dual channel CHIRP fishfinder for deep water.

Raymarine LightHouse Charts:

Axiom is available with Raymarine LightHouse Charts, which are created from official hydrographic chart sources and offer maximum readability, intuitive navigation and superior nautical chart quality.

The image above illustrates which different areas are covered by each charts, so if you're in the UK, we recommend purchasing the Western Europe region.

RealVision Max & 1kw Transducers For Axiom 2 Pro:

Raymarine B175 Through-Hull Transducer.
Raymarine B265 Through-Hull Transducer.
Raymarine RVM-100 transducer.
Raymarine RVM-400 series transducers.

Raymarine Axiom 2 Pro has a HydroTough nano-coating technology which repels water, providing reliable touchscreen control, enhanced colours and excellent sunlight visibility. Furthermore, smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Elsewhere, HybridTouch control enables you to plan and plot your course, taking command with reliable keypad control when seas are rough. Furthermore, the navigation unit has interchangeable keypads, so you can choose a dedicated Evolution keypad, or user-programmable soft keys.

One Display - Endless Possibilities:

Advanced Engine Integration:
Connect Axiom 2 Pro RVM with NMEA2000-compatible engines, or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

Discover More:
LightHouse Charts are created from official hydrographic chart sources for maximum readability, intuitive navigation, and superior quality.

Make Smarter Decisions:
Add a CAM300 and AR200 sensor for ClearCruise augmented reality. See AIS, waypoints and chart objects overlaid on high-definition video.

Stream, Watch, Listen:
Axiom 2 Pro RVM enables you to stream Netflix and Spotify, connect and control Fusion marine audio, JL audio and Rockford Fosgate marine audio systems, or even view Axiom 2 Pro S on the big screen with HDMI output.

Turn Night Into Day:
A combination of FLIR thermal imaging and Axiom 2 Pro RVM turn night into day, keeping you safe and secure, so you can boat with confidence.

Upgrade Your Awareness:
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

Smarter Boating:

LightHouse Apps:
Axiom 2 Pro RVM's capabilities can be expanded with third-party apps from Raymarine technology partners.

Smartphone Control:
Built-in Wi-Fi enables you to view and control your Axiom 2 Pro RVM on your phone or tablet with the Raymarine Mobile App.

Stay Connected:
Add the YachtSense Link router and keep your system connected onboard and off, with the Raymarine mobile App.

Create A Powerful Navigation System:

Axiom 2 Pro RVM contains 2 x RayNet Ethernet ports and NMEA2000 give you the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

Other Sizes Available:

Raymarine Axiom 2 Pro RVM 9" Multi-Function Display.
Raymarine Axiom 2 Pro RVM 12" Multi-Function Display

What's In The Box?

1. Display unit.
2. User Configurable Keypad.
3. Suncover.
4. Gasket.
5. Trunnion knobs (x 2)
6. Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3).
7. DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft).
8. RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft).
9. Mounting fixings x 4.
10. Documentation.
11. Power/Video/Audio cable 1.5 m (4.92 ft).

Technical Specifications:

Physical:
Dimensions (Surface/Flush Mounted): 258 x 452.02 x 240.4mm (H x W x D - including cables).
Dimensions (Trunnion Mounted): 281.20 x 482.50 x 233.4mm (H x W x D - including cables).

Display:
Screen Size: 16" (diagonal).
Ratio: 16:10.
Resolution: 1920 x 1080 FHD.
Colour Depth: 24-bit.
Illumination: 1200 nits / 1200 cdn/m2.
Number Of Simultaneous Touches: 1-16.
Viewing Angle: Top 88° / Bottom 88° / Left 88° / Right 88°.
Protective Coating: HydroToughTM Oleophobic.
Type: IPS (In-Plane Switching).

Power:
Power consumption @ 12 V dc: 42.36W.
Power consumption @ 24 V dc: 40.8W.
Operating voltage range: 8V dc to 32V dc.
Nominal supply voltage: 12V dc / 24V dc.
Off current @ 12V dc: 11 mA (0.13W).
Off current @ 24V dc: 18 mA (0.43W).
LEN (NMEA 2000 Load Equivalency Number): 1.
Current: 5A.
Fuse rating: 15A.

Connections:
Ethernet connection: 2 RayNet (10/100/1,000 Mbits/s) ports.
NMEA 2000 connection: DeviceNet connector.
Wi-Fi: Multiband - 2.4GHz, and 5Ghz 802.11b/g/n.
Bluetooth: v4.0.
Accessory connection: USB Micro B.
Internal storage: 64GB Solid State.
External storage: 2 front mounted MicroSDXC card slots .
Digital Video and Audio: HDMI Out Micro connector type D.
Analog video connections: BNC Analog video input (on power cable).
Analog audio connections: RCA connectors via power cable.
External GPS antenna: TNC connector.

GPS (GNSS):
Position Accuracy: Without SBAS: ‰¤ 15 metres 95% of the time, With SBAS: ‰¤ 5 metres 95% of the time.
Geodetic Datum: WGS-84 (alternatives can be selected on the MFD).
Satellite Differential Type (SBAS): WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan).
Channels: Track up to 28 satellites simultaneously.
Antenna: Internal - Ceramic chip mounted near top of unit.
GNSS compatibility: GPS, Galileo, GLONASS, Beidou.
Almanac Update: Automatic.
Signal Acquisition: Automatic.
Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start).
Operating frequency: 1574 MHz to 1605 MHz.
Refresh rate: 10 Hz (10 times per second).
Time to first fix from cold start: < 2 minutes.

SONAR:
Power output: RealVision MAX high CHIRP sonar channel: 600 Watts RMS.
Traditional dual channel CHIRP channel: 1kW RMS.
Sonar channels: RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz).
1kW CHIRP Port: 42 - 250kHz (Transducer dependent).
RealVision MAX Depth range: 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft).
1 kW Depth range: 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer).
Connections: 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector.

Environmental:
Relative humidity: Up to 93% @ 40°C.
Waterproof rating: IPX6, IPX7.
Storage temperature: -30°C to +70°C.
Operating temperature: -25°C to +55°C.
