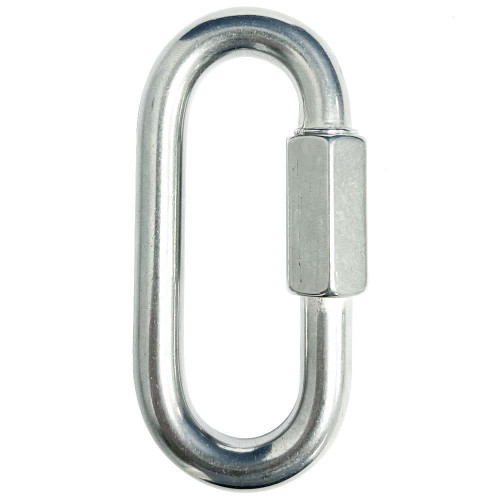

An unstamped quick link constructed from AISI 316 stainless steel.
Technical Specifications:
Please refer to the diagram in the product images.
Diameter (mm) | 3.5 | 4 | 5 | 6 | 8 | 10 |
A (mm) | 36 | 40 | 50 | 57 | 74 | 89 |
B (mm) | 10 | 12 | 13 | 15 | 18 | 20 |
C (mm) | 5 | 6 | 7 | 8 | 10 | 12 |
Break Load (kg) | 990 | 1250 | 2000 | 2900 | 4900 | 8000 |
