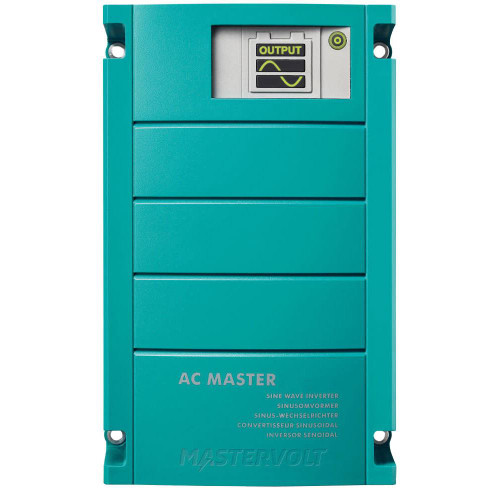

A reliable sine wave inverter that converts 12 or 24V battery voltage into reliable 230V 50/60Hz or 120V 50/60Hz grid power, making it perfect for recreational or semi-professional applications. The AC Master Series of inverters are easy to install and deliver full output, even in the most demanding conditions. Pure sine wave technology delivers outstanding power quality, ensuring sensitive equipment functions correctly. The usage of high frequency switching technology succesfully eliminates any annoying humming and buzzing sounds.
The ruggedly built inverter provides essential home comforts when you're far from the nearest grid connection.
Features:
Automatic power saving system for extended runtime.
Delivers full output at high peak power under the most demanding conditions.
Easy to install - convenient IEC socket with IEC plug included.
Pure sine wave technology protects sensitive equipment.
Reliable and safe operation - protected against overheating, short circuit and high or low battery voltage.
Applications Include:
Appliances.
Electric cooking.
Lighting.
Mobile applications in your home, office, service vehicle, or during holidays.
Power tools.
General Specifications:
Output Voltage: 230 V - 50 Hz (± 0.1%).
Output Waveform: True sine.
Nominal Battery Voltage: 12V.
Recommended Battery Capacity: 300W: ≥ 60Ah, 500W: ≥ 100Ah
Continuous Power at 25 °C / 77 °F, cos phi: 300/500W
Continuous Power at 40 °C / 104 °F, cos phi 1: 250/400W
Peak Load (5s): 600/800W
AC Connection: Universal
Galvanic Isolation: Yes
Efficiency: 90%
Display/Read-out: LED display
Alarms: 4 alarm modes
Dimensions (H x W x D) : 210 x 130 x 60 mm
Weight: 1.16kg/1.22kg
Compliance : CE, E-mark, ABYC A-31
Technical Specifications:
Technology: High frequency, input & output fully isolated
Low battery voltage, switches off at: 10 V, ± 0.5V
Low battery voltage, switches on at: 11 V, ± 0.5V
High battery voltage, switches off at: 16 V, ± 0.5V
High battery voltage, switches on at: 14.5 V, ± 0.5V
Max. ripple on DC (battery): 10% RMS
Input current (nominal load): 22.5/37.5A
No-load power consumption (ON mode): 0.58A – 7W
No-load power consumption (energy saving mode): 0.33A - 4W
Minimal DC fuse (slow blow): 2x 40A
Minimal cable size: 1.5 metre DC cable delivered as standard
Harmonic distortion typical: < 6%
Cos phi: All power factors allowed
Temperature range (ambient temp.): -20°C to 40°C - Derating power > 40°C -4°F to 104°F
Cooling: Natural/forced
Switch off at (auto recover after cooling down): 50°C/122°F
Protection degree: IP23, Vertical wall mounting
Protections: Over temperature, over load, short circuit, high/low battery voltage
MasterBus compatible: No.
