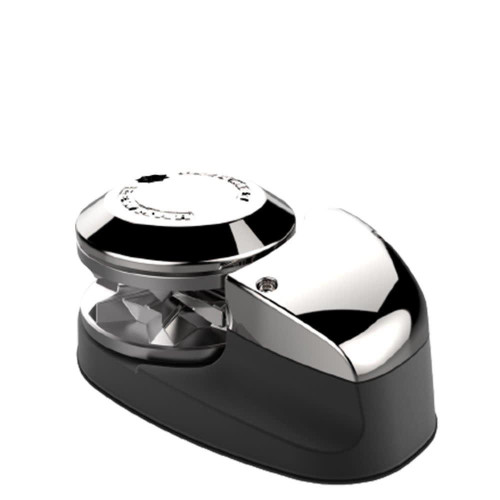

Lewmar's CPX series of vertical windlasses are a lightweight yet robust windlass solution. With a design inspired by Lewmar's V series, constructed with the use of alloy components to reduce the weight without an affect on performance. These materials have been chosen with care to ensure longevity and durability throughout the entire unit.
Key Features:
15% lighter than comparable all-stainless windlasses.
reduced parts thanks to new design and architecture.
Easy to service.
Great reliability.
Excellent performance.
Specifications:
| Model | CPX2 12V 6mm DIN | CPX2 12V 7mm DIN | CPX2 12V 8mm ISO | CPX2 12V 10mm DIN | CPX2 12V 10mm ISO | CPX2 24V 8mm ISO | CPX2 24V 10mm DIN |
| Voltage | 12V | 24V | |||||
| Chain | 6mm DIN | 7mm DIN | 8mm ISO | 10mm DIN | 10mm ISO | 8mm ISO | 10mm DIN |
| Motor Power | 700W | 900W | |||||
| Max Pull | 650kg | 760kg | |||||
| Working Load | 163kg | 180kg | |||||
| Max Line Speed | 21 meters per minute | 24 meters per minute | |||||
| Normal Current Draw | 80A | 45A | |||||
| Circuit Breaker | 90A | 50A | |||||
| Approximate WeightÃÃ | 17.5kg | 17.5kg | |||||
