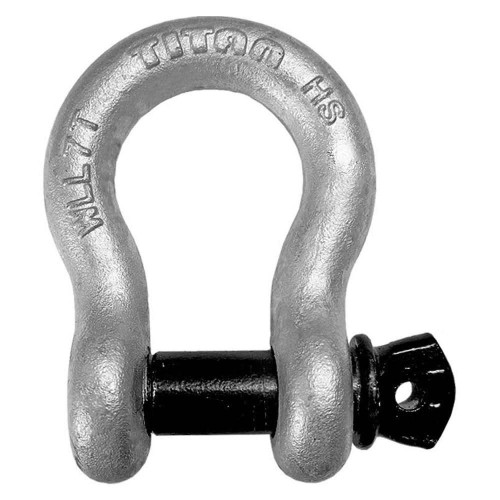

A hot dipped galvanised steel shackle with a breaking strength that exceeds that of high test G4 chain. The shackle has a hot dip galvanised coating on both the shackle and pin. Certain sizes are 30% stronger than standard Grade A shackles.
Technical Specifications:
Size | Working Load Limit | |
Bail | Pin | |
8mm | 10mm | 1,135kg |
10mm | 11mm | 1,816kg |
11mm | 13mm | 2,361kg |
13mm | 16mm | 2,996kg |
16mm | 19mm | 4,540kg |
19mm | 22mm | 6,356kg |
22mm | 25mm | 8,626kg |
25mm | 29mm | 11,350kg |
29mm | 32mm | 13,620kg |
32mm | 35mm | 16,344kg |
35mm | 38mm | 19,068kg |
