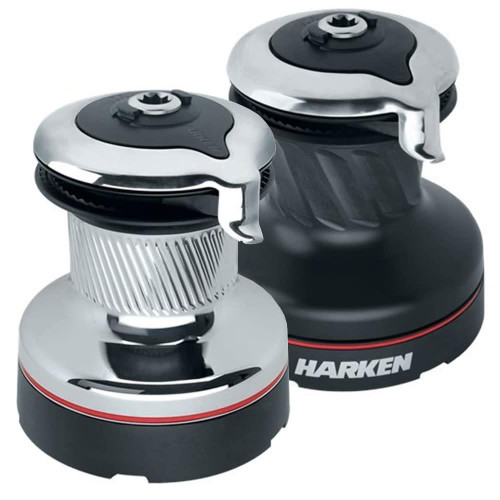

Harken's Radial Winch provides the perfect balance of secure grip and line longevity with smooth, controlled easing under load. The three speed boat winch features diagonal ribs instead of textured abrasive materials to maximize gripping power and greatly reduce line wear. The patented angle of ribs drives line wraps down when easing to keep them on the area of the drum that offers the best control. As the Harken winch has a self-tailing mechanism, one crew member can quickly and easy trim or raise the sails.
The winch is smaller yet carries higher loads and offers stress-free seasonal maintenance, with one person installation and easy power upgrades available. Furthermore, Harken's radial winch has high strength composite roller bearings and bushings that reduce friction under load. The load-carrying gears and pins are constructed from 17-PH stainless steel for strength and corrosion resistance.
Key Features of Harken's Three Speed Radial Winch:
An adjustable stripper arm is integrated into the winch for safer operation - the arm completely covers the rotating winch top, preventing fingers and clothing from catching in moving parts. The arm adjusts to multiple positions after the winch is mounted to optimize line exit.
High strength composite roller bearings and bushings reduce friction under load.
Offers maximum holding power with minimal line wear.
Load carrying gears and pins are constructed from 17-4 PH stainless steel for strength and corrosion resistance.
Non abrasive diagonal ribs on gripping surface hold the line securely and reduce line wear.
Patented angle of ribs drives line wraps down when easing to keep them on the area of the drum that provides the best control.
Patented mounting system enables fast, one person installation without removing the drum.
Power-grip jaws shaped for easy line entry and optimum hold. The upper jaw adjusts under line pressure and accepts a variety of line sizes.
Teeth grip evenly with or without load.
Physical Specifications:
Base Ø: 240mm.
Drum Ø: 130mm.
Height: 256mm.
Weight: 12.8kg (Aluminium) / 16.6kg (Chrome).
Technical Specifications:
Configuration: Self-tailing.
Fasteners (mm): M8 SH.
Fastener Circle: 205mm.
Gear Ratio (1): 2.30.
Gear Ratio (2): 5.70.
Gear Ratio (3): 18.50.
Line Entry Height: 115mm.
Minimum Line Ø: 10mm.
Maximum Line Ø: 18mm.
Number of Fasteners: 6.
Power Ratio (1): 9.00.
Power Ratio (2): 22.20.
Power Ratio (3): 72.00
Speeds: Three.
