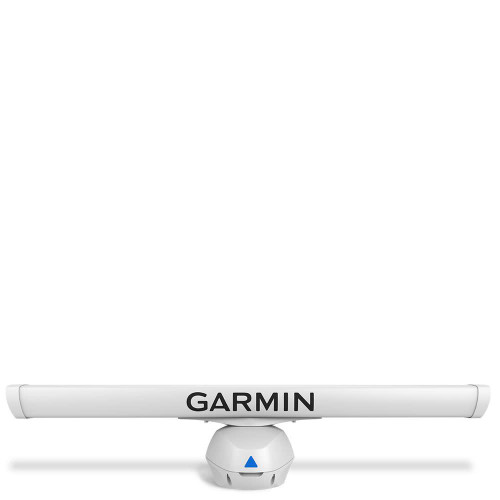

Garmin's GMR Fantom Open-Array Antenna & Pedestal is Garmin's most powerful solid-state radar. The unit highlights moving targets in colour, with a detection range of 20 metres to 96 nautical miles, even in fog or rain. Plus, the boat radars deliver rotation speeds of up to 48 RPM for fast screen updates, or 24 RPM when in reduced power consumption. The Garmin radar has a 1.8 degree horizontal beam width that provides high-resolution imagery and high antenna gain to pick out even the weakest targets at a distance.
GMR Fantom has MotionScope technology that uses the Doppler effect to detect moving targets and highlight them in different colours, enabling you to navigate around other boats or severe weather - or alternatively toward fishing spots where birds feed at the surface.
Key Features:
Auto Bird Gain: Locate flocks of birds at the water's surface, where baitfish are also likely to be found.
Clear the cutter with scan-to-scan averaging.
Dual-Radar Support: Dual Radar provides redundancy and allows each display unit on the boat to pull data from of two different radar sources.
Dual Range: The single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range.
Dynamic Auto Gain: Automatically adjusts to your surroundings for optimal performance in all conditions.
Dynamic Sea Filer: Automatically adjusts sea clutter for calm, medium and rough sea conditions.
Echo Trails: See a historical "trail" on the screen to help you quickly and easily identify moving targets and potential collision threats.
Guard Zone: Set the safety zone and receive an alarm when an object enters the zone.
MAPRA automatic acquisition provides triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope.
MotionScope technology shows targets in colour as they move towards or away from you.
Radar Overlay: Overlay radar images onto your chartplotters map page. You can add optional autopilot or heading sensor (sold separately) for best results.
Target Size: Adjust on-screen target resolution for better separation based on your surroundings.
VRM and EBL: Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.
No complex user settings - easy to install and start using.
What's In The Box?
Garmin Antenna and Pedestal.
Mounting hardware kit and template.
Right angle power cable - 15 metres.
Right angle network cable - 15 metres.
Voltage converter.
Documentation.
Specifications:
General:
Dimensions (Height x Diameter): 4ft: 43.3cm x 131.4cm | 6ft: 40.3cm x 190.9cm.
Weight: 4ft: 5.2kg (Array), 15.7kg (Pedestal) | 6ft: 7.3kg (Array), 15.7kg (Pedestal).
Water Rating: IPX6.
Max Wind Load: 80 knots.
Antenna Length: 4ft: 121.92cm | 6ft: 182.9cm.
Rotation Speed: 24 and 48RPM - High speed only available in Single Range mode, with MotionScope disabled and on range settings of 12NM or lower.
Beam Width: 4ft: 1.8° horizontal, 23° vertical | 6ft: 1.25° horizontal, 23° vertical.
Max Range: 50W: 72mn, 120W: 96nm.
Minimum Range: 6 metres.
Radar Type: Open-Array.
Electrical Features:
Power Input: 10-32V.
Transition Power: 250W power output - equivalent to a 15kW magnetron.
Radar Features:
Dual Range Support: Yes.
Radar Overlay Support: Yes.
Dual Radar: Yes.
Autobird: Yes.
Dynamic Auto Gain: Dynamic.
MAPRA Target Track: Yes (Requires heading sensor, sold separately).
Echo Trail: Yes.
Motionscope: Yes.
Target Size: Yes.
Scan: Yes.
Other:
MotionScope: Yes.
Auto Bird Gain: Yes.
Dual Radar Support: Yes.
Echo Trails: Yes, True.
Programmable Antenna Parking Position: Yes.
Maximum Wind Speed: 80 knots.
