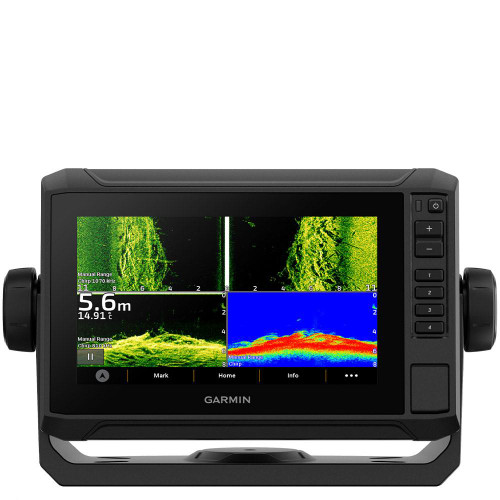

Garmin's Echomap UHD2 7" Chartplotter/Fishfinder combo supports three sonar types (Garmin traditional, ClearVu and SideVu), plus offers improved detail with a range of high-contrast, vivid colour palettes. In addition, the Garmin Chartplotter comes preloaded with Garmin Navionics+ mapping for the UK, Ireland and Netherlands. All this is controlled on the premium touchscreen display with keyed-assist that is intuitive and easy to read.

With wireless networking, you can wirelessly share information such as sonar, waypoints and routes with another compatible Echomap UHD2 unit on your boat. There's also built-in Wi-Fi connectivity that pairs with Garmin's free, all-in-one mobile app for access to the OneChart feature, software updates, Garmin Quickdraw Community data and more.

Key Features:

Auto guidance+ technology.
Built-in Garmin Navionics+ cartography for UK, Ireland and Netherlands - includes a 1-year subscription for daily updates, raster cartography and more.
High contrast, vivd colour palettes.
Multi-band GPS provides improved position accuracy, particularly in areas where signals are reflected or weak.
Support for crisp, clear traditional sonar and ClearVü and SideVü scanning sonar.
Wirelessly connects to Garmin Force Trolling Motor to create and follow routes, navigate to waypoints, control speed, check battery life and more.
Wirelessly share information such as sonar, waypoints and routes with another compatible Echomap UHD2 chartplotter on your boat.

What's In The Box?

ECHOMAP unit.
12-pin sounder to 8-pin transducer cable.
Power cable.
Tilt/swivel mount with quick release cradle.
Protective cover.
Hardware.
Documentation.

Technical Specifications:

General:
Dimensions: 21.8 x 14.2 x 8.1cm.
Display Size: 15.5 x 8.7cm.
Display Resolution: 800 x 480 pixels.
Display Type: WVGA, TN.
Weight: 1kg.
Water Rating: IPX7.
Mounting Options: Ball or flush.

Maps & Memory:
Accepts Data Cards: 1 microSD card; 32GB maximum size.
Waypoints: 5000.
Track Points: 50,000.
Tracks: 50 saved tracks.
Navigation Routes: 100.

Sensors:
Built-in Receiver: Yes.
Receiver: 10 Hz.
GPS: Yes.
Glonass: Yes.
Galileo: Yes.
Beidou: Yes.
Supports WAAS: Yes.
Supports Multi-Band, Multi-Constellation GPS: Yes.

Built-in Maps:
Built-in Auto Guidance+ Yes (downloadable via ActiveCaptain app).
Garmin Navionics + (Coastal): Yes.
Garmin Navionics + (Inland): Yes.
Tide Tables: Yes.

Optional Map Support:
Garmin Navionics+: Yes.
Garmin Navionics Vision+: Yes.
Garmin Quickdraw Contours: Yes.
Topo: Yes.
Standard Mapping: Yes.

Chartplotter Features:
AIS: Yes.
DSC: Yes.
Supports Fusion-Link Compatible Radios: Yes.
ActiveCaptain Mobile Planning Compatible: Yes.
Sailing Features: Yes.

Sonar Features & Specifications:
Displays Sonar: Yes.
Power Output: 500W.
Traditional Sonar (Dual Frequency/Beam): Built-in (Single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP).
ClearVU: Built-in 260/455/800/1000/1200 kHz.
Side VU: Built-in 260/455/800/1000/1200 kHz.
Panoptix Sonar: Yes.
LiveScope: Yes.

Connections:
NMEA 2000 Ports: Yes.
Garmin Marine Network Ports: 1.
12-Pin Transducer Ports: 1.
Bluetooth Calling: Yes.
ANT+ (Connectivity): Yes.
Garmin Wi-Fi Network (Local Connection): Yes.

Electrical Features:
Power Input: 9-18 Vdc.
Typical Current Draw (12V): 1.52A.
Maximum Current Draw (12V): 3.2A.
Maximum Power Usage (10V). 18.3W.
