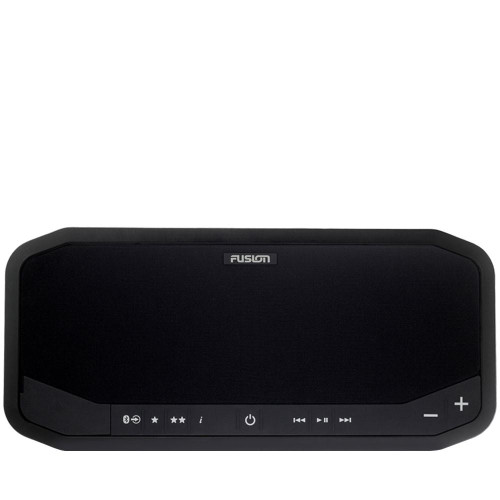

A plug and play, all in one marine audio solution that enables you to enjoy quality audio on board your boat from the convenience of a single unit. The quick and easy to install stereo operates on 12V DC power, an earth connection and an AM/FM antenna, with a single cutout at most required.

Engineered for the harsh marine environment, the panel stereo has an IP65 rating for protection against dust and water ingress, thanks to its high grade plastic grille and UV resistant design. Furthermore, the stereo can be installed with a conventional flush mount or premium flat finish. Alternatively, you can use the accessory mounting spacer to surface mount the Fusion marine stereo, with no mounting cutout required.

Fusion's digital signal processing makes a technically superior listening experience simple by optimising the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels. The panel stereo is superbly designed, combining built-in amplification, stereo source selection, two 3" speakers and a large surface passive bass radiator to deliver premium, optimised audio onboard from a single unit.

Key Features:

Built-in Class D amplifier delivers higher efficiency and greater output.
Control your music from a compatible smart device or Garmin watch.
Hi-Fi audio reproduction through pre-configured DSP.
Multiple mounting options available, including flush, flat and surface mounting.
Pre-configured digital signal processing technology for a superior listening experience.

What's In The Box?

Fusion Panel-Stereo.
Stereo trim.
Six 6-gauge, self-tapping stainless-steel screws.
Power wiring harness.
Documentation.

Specifications:

General:
Dimensions: 13.54" x 6.1" x 1.97" (344 x 155 x 50 mm).
Weight: 2.54 lbs (1.15 kg).
Water Rating: IP65 (when properly installed).
Operating Temperature: 32° to 122°F (0° to 50°C).
Current (max): 10A.

Networking:
Bluetooth Wireless Range: Up to 30 ft (10 metres).
ANT Wireless Range: Up to 10 ft (3 metres).
Wireless Frequencies/Protocols: Bluetooth: 2.4ghz @ +12 dbm nominal / ANT: 2.4 ghz @ +7 dbm nominal.

Audio:
Amplifier: Class-D.

Electrical Features:
Power Input: 10.8-16 vdc.
Compass Safe Distance: 7.6" (229 mm).

Stereo Features:
Peak Power: 140 watts.
Rated Power Output: (2 ohm): 43 watts RMS x 2 @ 14.4 v input < 1% THD.
Built-in Digital Signal Processing (DSP): Yes (pre-configured).
Control: Yes (smart device and Garmin watch).
Bluetooth wireless technology: Yes.
ANT wireless technology: Yes.
Multi-language Interface: Chinese (mandarin), Dutch, English, French, German, Italian, Japanese, Spanish.
Software Updates: USB.
Warranty: 1 Year.

Sources:
Supported Sources: AM, FM, Bluetooth®, USB audio, iPhone, iPod, AUX x2, AOA.

Connections:
Auxiliary Inputs (RCA:) 2.
USB Ports: 1.
AM/FM ports (Motorola Antenna Connector): 1.
Line out: 1 RCA Output (AUX).
