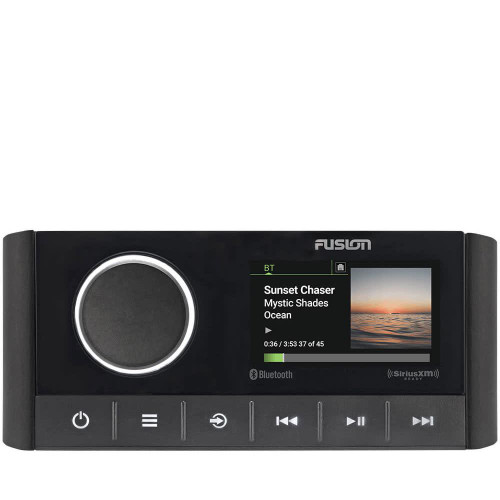

Fusion's latest Apollo marine stereo inherits key audio innovations and revolutionary technology from the award-winning Apollo RA770 Marine Entertainment System. This technology includes Fusion's Digital Signal Processing, PartyBus, Over-The-Air Software Updates, as well as more source options including Optical Audio for connection to TV's in salons and cabins. Apollo makes it simple to customize your audio entertainment, providing excellent sound quality in any area of your boat.
Key Features:
Digital Signal Processing:
Digital Signal Processing produces a superior listening experience in every environment. Precisely calculated loudness curves are optimized for the human ear to ensure quality, full range audio, regardless of volume level, whilst a feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion a thing of the past. Using environmental information and acoustically designed speaker profiles, customized, optimized audio can be achieved for any area of your boat.
Fusion-Link:
Fusion-Link technology enables you to control your entertainment directly from partnered multi function displays, compatible Apple or Android devices via the Fusion-Link device and even Garmin smartwatches.
PartyBus Network:
PartyBus kicks in when more PartyBus enabled stereos are added to your entertainment system. Each stereo can be synced to play the same perfectly synced audio throughout the vessel, or alternatively you can opt for Personal Mode and play different tunes on different stereos.
Software Updates:
Over-The-Air Software Updates enable you to easily download the latest software updates from your smartphone or compatible device through the free Fusion-Link app.
Multi-Zone Technology:
Three independent audio zones are available for a customised listening experience across your boat. Each zone has advanced localised menu controls including volume limits, zone naming, disabling zones and more. Subwoofer and full range line outs require additional amplification.
More Source Options:
The Fusion marine stereo features a range of source options with Bluetooth, UPnP, optical audio, DAB+ Radio, AM/FM radio, AUX and USB connections all ready at your fingertips.
True Marine Designed and Engineered:
The front panel has an IPX7 water resistance rating and has been tested to a high level against salt, fog, temperature, vibration and UV, ensuring it can withstand harsh marine environments.
Wireless Software Updates:
Over-The-Air Software Updates enable you to easily download the latest software updates from your smartphone or compatible device through the free Fusion-Link app.
Technical Specifications:
Dimensions:
Physical Dimensions - Width x Height x Depth (Front Panel incl. Volume Encoder): 157 x 68 x 123mm.
Mounting Dimensions - Width x Height x Depth: 135 x 52 x 105mm.
Technical Specifications:
Display: 2.7" optically bonded colour LCD display.
Sources: AM/FM, Bluetooth, Apple AirPlay 2, digital optical input, USB audio, iPhone, iPod, AUX, UPnP, MTP, DAB+ ready. (DAB+ does not support traffic and weather).
Digital Signal Processing (DSP): Yes.
Fusion speaker, subwoofer and amplifier profiles preconfigured via DSP: Yes.
Fusion-Link Control (Wireless): Yes.
PartyBus Technology: Yes - receive and broadcast wired or wirelessly when Apollo RA670 is integrated with an external network router or Apollo RA770 stereo.
Bluetooth Wireless Technology: Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocols).
Wi-Fi: Yes - when integrated with an external network router or an Apollo RA770 stereo.
ANT Technology: Yes.
NMEA 2000: Yes, control via MFD - Fusion-Link.
Works with NRX Remotes: Yes.
Optical Input: 1 x Digital Optical Input (SPDIF).
Fits DIN Cut-Out: Yes, requires optional adapter plate kit.
Water Resistance: IPX6 and IPX7 from the front panel when installed correctly.
Internal Amplifier: Class-D.
Rated Power Output (4 Ohm): 26 W rms x 4 @ 14.4 V input < 10% THD.
Rated Power Output (2 Ohm): 43 W rms x 4 @ 14.4 V input < 10% THD.
Peak Power: 280W max.
Multi-Language User Interface: English, French, German, Spanish, Dutch and Italian.
Auxiliary Inputs: 1 x RCA Input (AUX).
Ethernet: 1 x Ethernet port.
USB 2.0 Port: 1 x USB 2.0 port (for phone charging/media playback).
AM/FM Radio: 1 x Motorola antenna connector port.
Speaker Channels: 4 x channels, 1 pair per zone (zone 1 & 2 internal amplifier, zone 3 requires external amplification).
RCA Pre-Out (Left, Right and Subwoofer): 3 zones - 1 x L+R per zone, 1 x Sub per zone - All require external amplification.
Operating Voltage: +10.8 - 16V dc.
DAB+ Ready: Fusion DAB+ module is required (sold separately). Only available where DAB or DAB+ broadcast is supported.
Software Updates: Over-the-air software updates when Apollo RA670 is integrated with an external network router or Apollo RA770 stereo via the free Fusion-Link app or USB.
