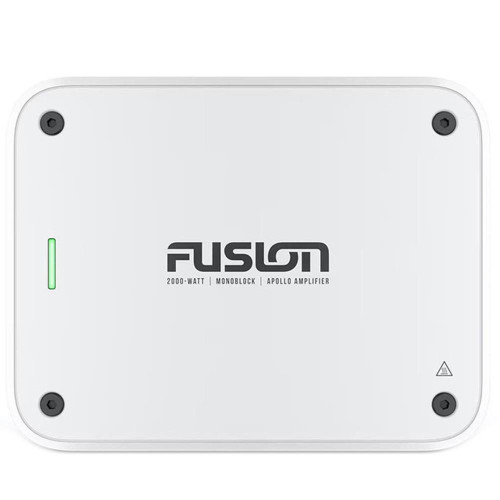

Fusion's Apollo Marine Amplifier is designed specifically for use with Fusion's DSP-enabled marine stereo and Fusion speakers. With 650 watt RMS per channel (at 4 ohm), the Fusion marine amplifier is specially designed to power a subwoofer.
Key Features:
Conformal Coated PCBs:
The amplifier circuit board has been specially coated to provide enhanced protection from the harsh marine environment.
Easy Installation:
A mounting bracket is included in the box that enables you to simply clip the amplifier in place for a clean finish.
Easy Tune:
Easy Tune automatically adjusts audio settings for the best possible sound quality, with no manual adjustments required. This does require setup using the Fusion-Link app on a compatible smartphone.
Efficient Class-D Design:
Listen to music for longer at higher volumes, with less drain on your marine battery.
Ignition Protection:
An intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.
Powder Coated Aluminium Finish:
This finish provides protection from salt fog, temperature and vibration. UV tested with a modern aesthetic design to add style to your boat.
LED Indicator:
The LED indicator shows issues with electrical currents and shorts, as well as the temperature.
Less Total Harmonic Distortion:
The marine amplifier is designed with minimal distortion and noise, allowing for better quality audio.
True Marine Design:
The amplifier is IPX7 rated and comes with a three year warranty.
Technical Specifications:
Physical Dimensions - Without Bracket (W x H x D): 235 x 180 x 45 mm.
Physical Dimensions - With Bracket (W x H x D): 235 x 180 x 50 mm.
Weight: 2.2kg.
Water Rating: IPX2.
Amplifier Class: Class-D
CEA-2006 Power Rating: 650-watt RMS x 1 @ 14.4 V input - 4 ohm < 1% THD.
Total Rated Power Output - 2 ohm (watt): 1100-watt RMS x 1 @ 14.4 V input - 2 ohm < 1% THD.
Peak Power: 2000 Watt.
Input Sensitivity: 2.15 V RMS.
Input Impedance:22k Ohm.
Operating Voltage: 10.8V - 16V DC.
Current Consumption (Stand By): < 5 mA @ 14.4 V input.
Current Consumption (Idle): < 0.89A @ 14.4 V input.
Current Consumption (Max): 87A.
Fuse Rating: 125A electronic fuse (no replacement necessary).
Ignition Safety Protected (SAE J1171): Yes.
Protection Circuits: Reverse voltage, input under/over voltage, over temperature, output short circuit.
Operating Temperature Range: 0° to 50° C.
Warranty: 3 Years.
