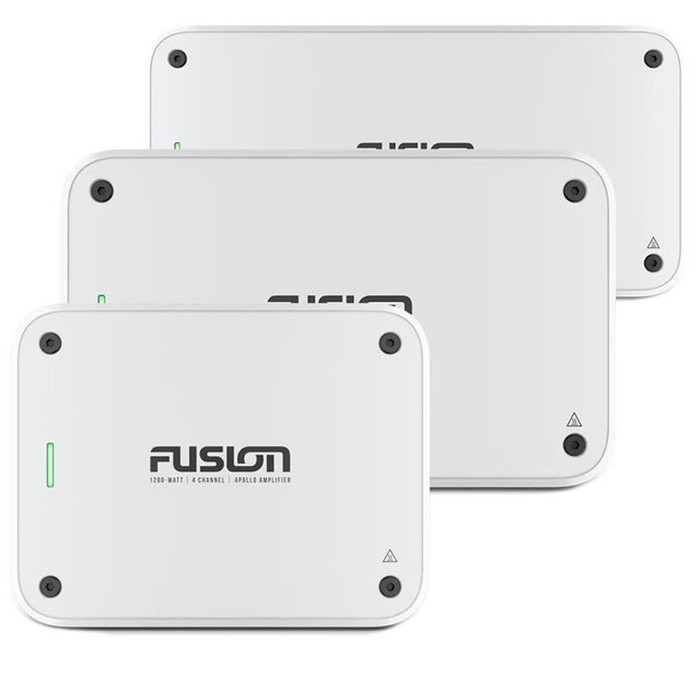

Fusion's Apollo Marine Amplifier is designed specifically for use with Fusion's DSP-enabled marine stereo and Fusion speakers. With 150 watt RMS per channel (at 4 ohm), the Fusion marine amplifier enables you to power up to eight pairs of speakers or four pairs of speakers and two subwoofers (depending on model) ensuring high quality sound in more areas of your boat.
Key Features:
12 and 24V Compatible:
Fusion Apollo Zone amplifier is designed to work with both 12V and 24V systems.
Conformal Coated PCBs:
The amplifier circuit board has been specially coated to provide enhanced protection from the harsh marine environment.
Easy Installation:
A mounting bracket is included in the box that enables you to simply clip the amplifier in place for a clean finish.
Easy Tune:
Easy Tune automatically adjusts audio settings for the best possible sound quality, with no manual adjustments required. This does require setup using the Fusion-Link app on a compatible smartphone.
Efficient Class-D Design:
Listen to music for longer at higher volumes, with less drain on your marine battery.
High Power Mode:
High power mode adapters (included) are designed to simplify the way you bridge two channels in high power mode, increasing the output power.
Ignition Protection:
An intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.
Powder Coated Aluminium Finish:
This finish provides protection from salt fog, temperature and vibration. UV tested with a modern aesthetic design to add style to your boat.
LED Indicator:
The LED indicator shows issues with electrical currents and shorts, as well as the temperature.
Less Total Harmonic Distortion:
The marine amplifier is designed with minimal distortion and noise, allowing for better quality audio.
RMS Power:
20-watt RMS per channel (at 4 ohm) enables you to add an extra pair of speakers on board.
True Marine Design:
The amplifier is IPX7 rated and comes with a three year warranty.
Technical Specifications:
| Channels | 4 Channels | 6 Channels | 8 Channels |
| Peak Power | 1200W | 1800W | 2400W |
| Physical Dimensions: Without Bracket (W x H x D) | 235 x 180 x 45mm | 297 x 180 x 45mm | 359 x 180 x 45mm |
| Physical Dimensions: With Bracket (W x H x D) | 235 X 180 X 50mm | 297 x 180 x 50mm | 359 x 180 x 5mm |
| Weight | 2.2kg | 2.7kg | 3.15kg |
| Water Rating | IPX2 | ||
| Amplifier Class | Class-D | ||
| CEA-2006 Power Rating | 150-watt RMS x 4 @ 14.4 V input - 4 ohm < 1% THD | 150-watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD | 150-watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD |
| Total Rated Power Output - 2 ohm (watt) | 290-watt RMS x 4 @ 14.4 V input - 2 ohm < 1% THD | 290-watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD | 290-watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD |
| Total Rated Power Output - 4 ohm Bridged (watt) | 580-watt RMS x 2 @ 14.4 V input - 4 ohm Bridged < 1% THD | 580-watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD | 580-watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD |
| Input Sensitivity | 1.3V RMS | ||
| Input Impedance | 22k ohm | ||
| Operating Voltage | 10.8V - 16V DC | ||
| Current Consumption (Stand By) | < 5 mA @ 14.4V input | ||
| Current Consumption (Idle) | < 1.15A @ 14.4V input | < 1.32A @ 14.4V input | < 1.60A @ 14.4V input |
| Current Consumption (Max) | 53A | 78A | 104A |
| Fuse Rating | 85A electronic fuse (no replacement necessary) | 125A electronic fuse (no replacement necessary) | |
| Ignition Safety Protected (SAE J1171) | Yes | ||
| Protection Circuits | Reverse voltage, input under/over voltage, over temperature, output short circuit | ||
| Operating Temperature Range | 32° to 122° F (0° to 50° C) | ||
| Warranty | 3 Years | ||
