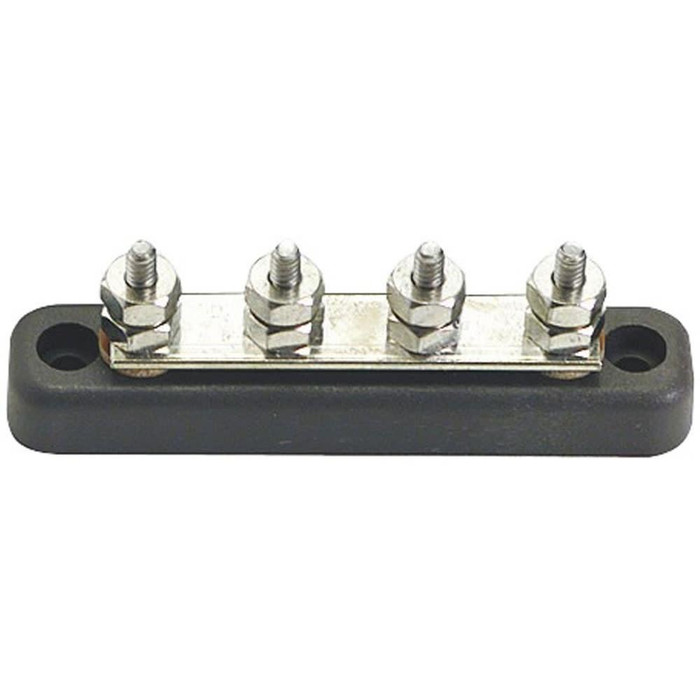

A common mini bus bar that is great for applications where there is limited space available. A one-piece serrated flange nut ensures correct and secure connections. Bus bars conduct electricity within a switchboard, distribution board, substation, battery bank or other electrical apparatus. The cover is constructed from a clear polycarbonate.
Specifications:
Number Of Screw Terminals | - | 5 |
Number Of Stud Terminals | 4 | 2 |
Maximum Voltage | 300V AC, 48V DC | |
Terminal Type | #10-32 Stud | #10-32 Stud, #8-32 Screw |
Continuous Rating | 100A | |
Base Material | UV 94-V0 rated glass reinforced thermoplastic | |
Bus Material | Tin-plated copper CDA 110/UNS110000 | |
Screw Terminal Torque | - | 15lb (1.69 Nm) |
Stud Torque | 18lb (2.03 Nm) | |
Weight | 0.16lb (0.07kg) |
