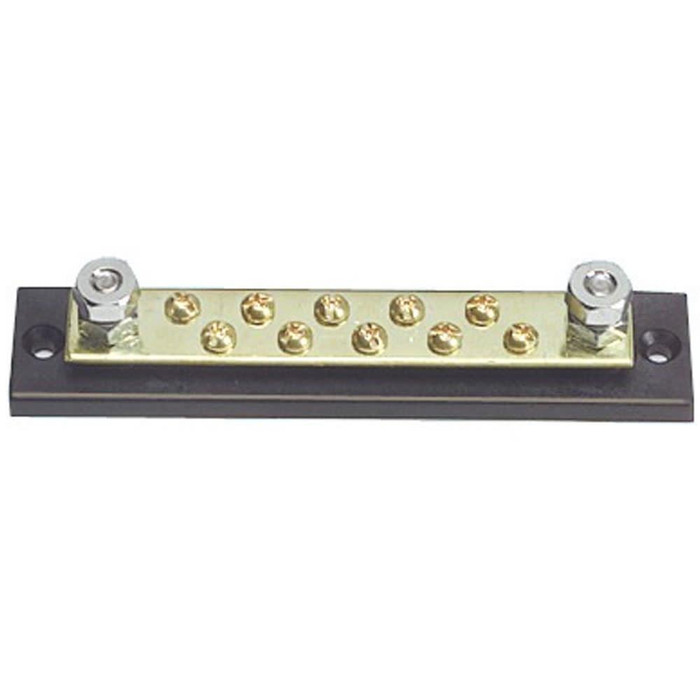

An industry standard bus bar for positive distribution and the collection of negative or AC ground circuits. Insert moulded stainles steel studs eliminate the need for securign nuts and allow high torquing for excellent electrical contact. A one piece serrated flange nut ensures correct and secure connections. A cover for the bus bar can be found here.
Specifications:
| Model | 10 Gang | 20 Gang | Four 1/4" - 20 Studs |
| Number Of Screw Terminals | 10 | 20 | - |
| Number Of Terminal Studs | 2 | 4 | |
| Maximum Voltage | 300V AC, 48V DC | - | |
| Terminal Type | 1/4"-Stud, #8-32 Screw | 1/4" Stud | |
| Continuous Rating | 130A AC, 150A DC | ||
| Base Material | UV 94-V0 rated glass reinforced thermoplastic | ||
| Bus Material | Tin-plated copper CDA 110/UNS110000 | ||
| Screw Terminal Torque | 15lb (1.69 Nm) | - | |
| Stud Torque | 60lb (6.78 Nm) | ||
| Weight | 0.34lb (0.15kg) | 0.51lb (0.23kg) | 0.35lb (0.16kg) |
